“Motor brake is an electric motor equipped with an integrated braking system. It is ideal for applications that require instant stopping without slip or drift, ensuring high precision and safety.
However, it’s not recommended for frequent stop-and-start operations, as it may lead to excessive current draw during startup and reduce motor lifespan. For such applications, using a clutch system is a more suitable and efficient solution.

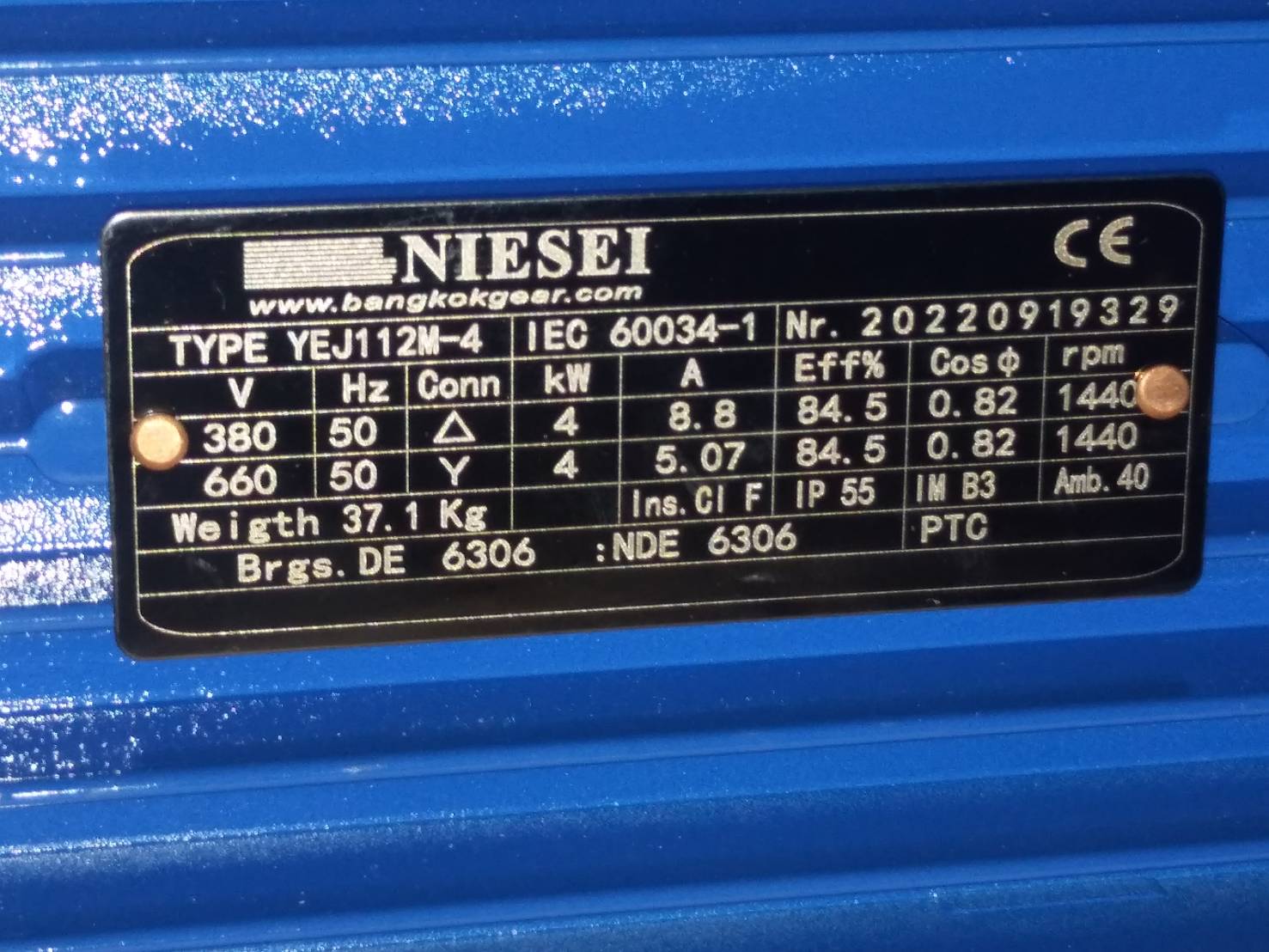

Distributed under the “”NIESEI”” brand

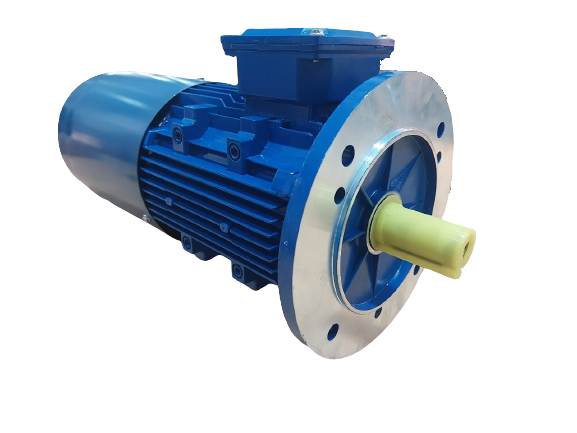

•Motor Brake available in two mounting types: Foot Mounted (B3), Flange Mounted (B5/B14)
•Power Range: 0.18 kW(0.25 HP) to 15 kW(20 HP)
•Speed Options: 3000 RPM (2 Pole), 1500 RPM (4 Pole), 1000 RPM (6 Pole)

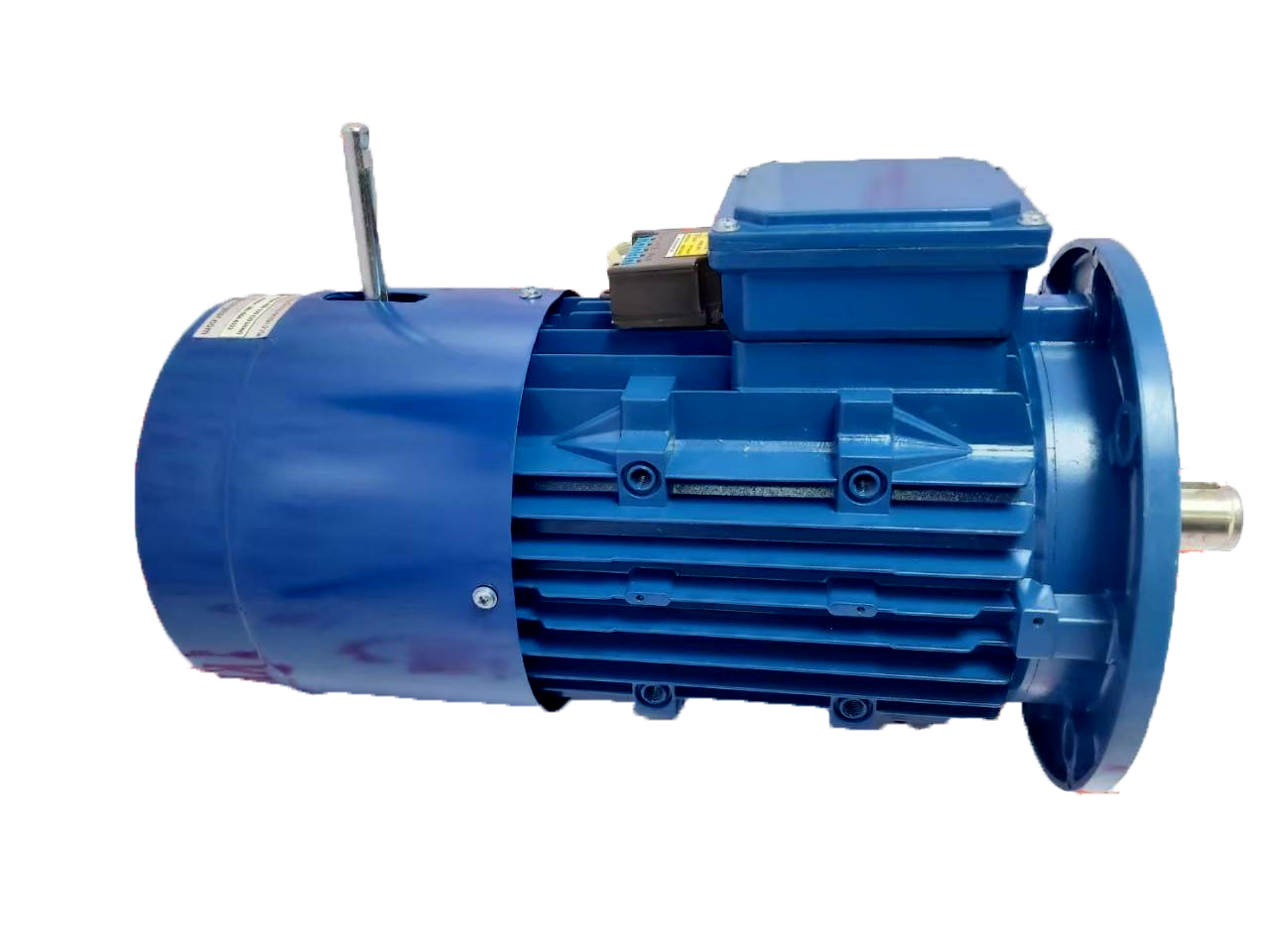

Brake Motor Components
•Electric Motor: AC 220/380V – 380/660V, 3-phase
•Brake Unit: Includes brake coil, brake pad, and brake body
Brake Motor Operation & Installation
The brake system operates when power is cut off—the brake engages and immediately stops the rotor (shaft), bringing the machine to a precise halt. When power is supplied again, the brake releases the shaft, allowing the motor to run normally.

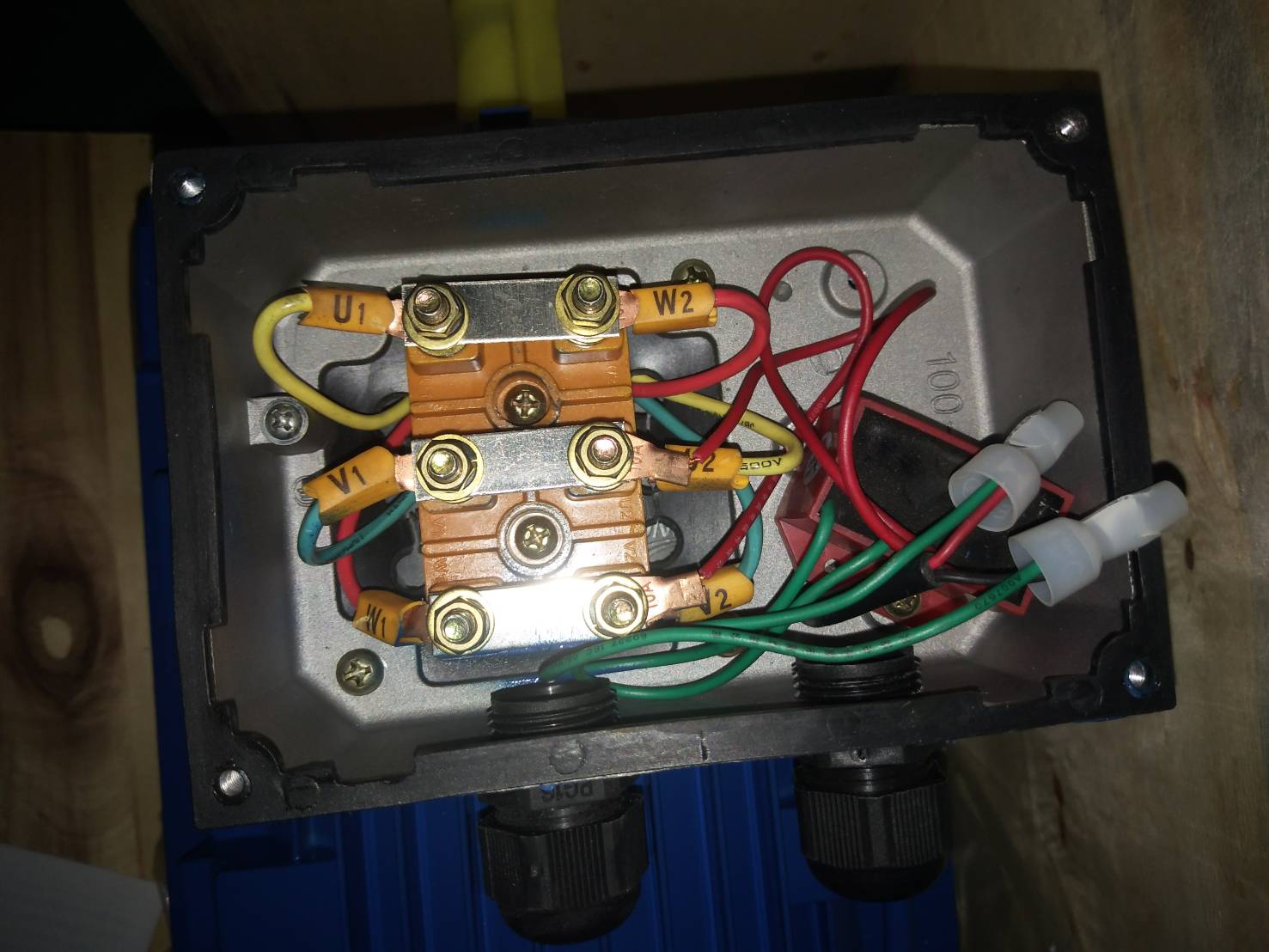

The brake assembly is installed at the rear end of the motor shaft, and it draws power directly from the motor’s terminal box (input side).
Braking distance depends on the spring tension, which can be adjusted for optimal performance.
The brake system is available in four voltage types:
90V DC
24V DC
190V DC
380V AC (3-phase)”
