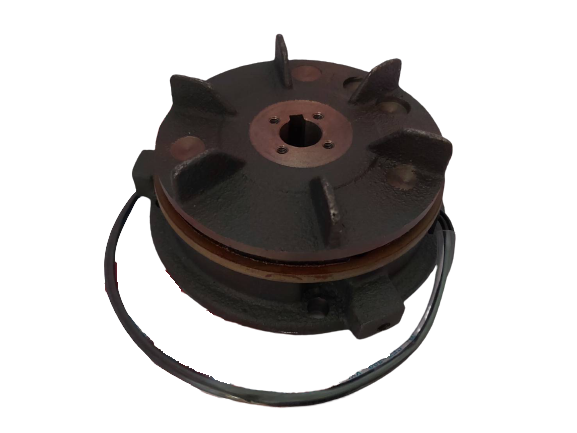

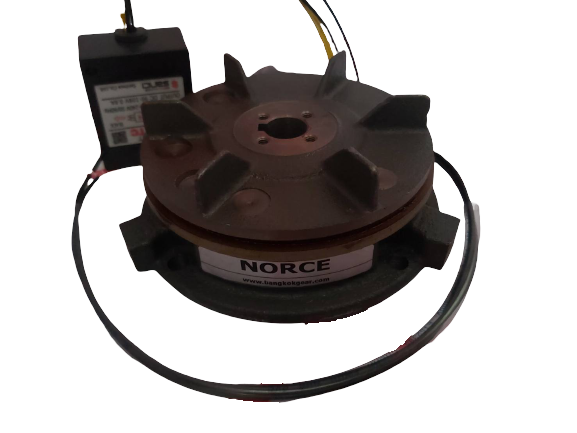

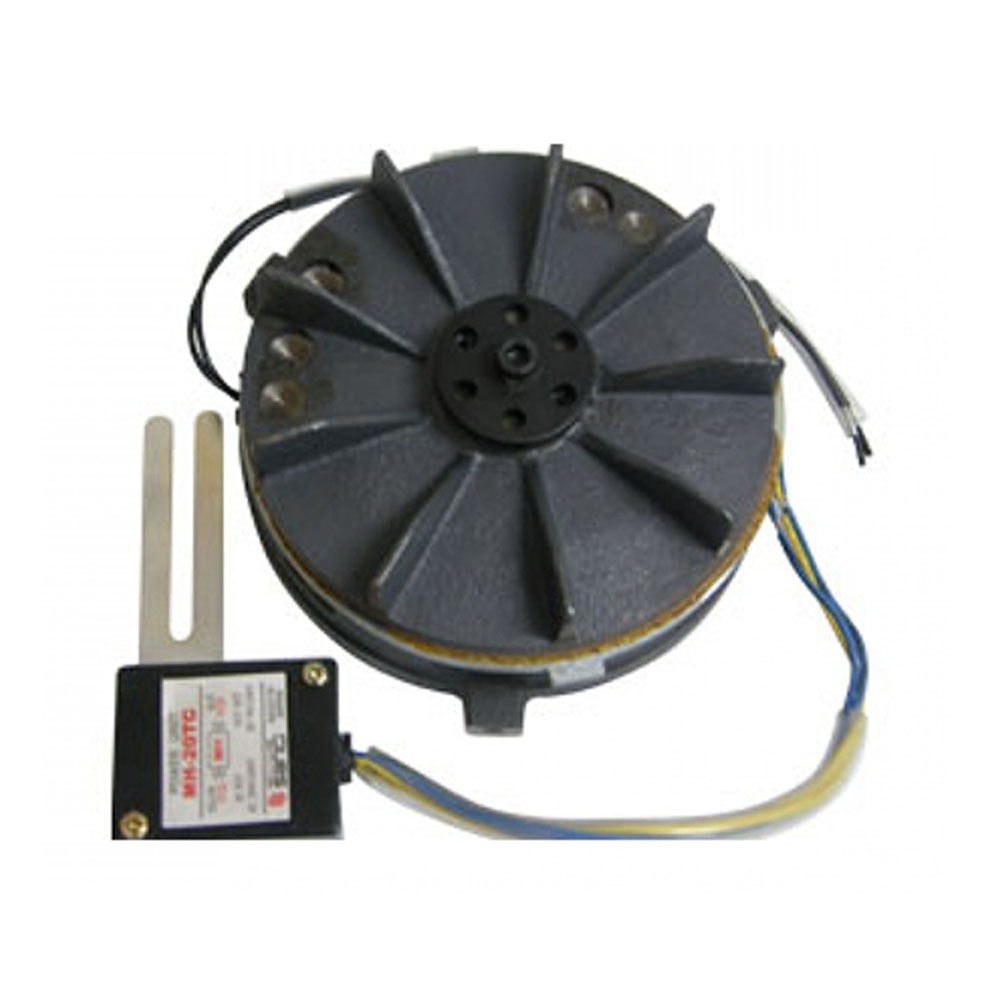

“🛑 This 90VDC electromagnetic brake from “”NORCE”” brand is designed for use with motors or machinery that require fast and precise stopping performance. Equipped with a built-in steel cooling fan, it ensures stable operation even during continuous use.
⚙️ How It Works:
When 90VDC power is applied, the magnetic coil activates, pulling the friction plate against the brake disc, stopping the shaft.
When power is cut off, the magnetic field disappears, and the spring pushes the friction plate away, allowing the shaft to rotate freely again.
🌬️ Key Features – NORCE 90VDC Brake (with Steel Fan)
•Steel cooling fan for efficient heat dissipation
•Durable under continuous rotation and friction
•Ideal for applications with frequent start-stop cycles and heavy loads
🔧 Main Components:
•90VDC Electromagnetic Coil
•Friction Plate
•Brake Hub
•Steel Cooling Fan
•Pressure Springs
✅ Advantages:
•Fast response – instantly and accurately stops the shaft
•High heat resistance with steel fan cooling system
•Suitable for heavy-load systems such as cranes, elevators, and geared motors
•Fail-safe operation – engages automatically during power failure
⚠️ Cautions:
•Requires an AC to 90VDC conversion via a rectifier or brake controller
•Over/undersized installation may cause heat buildup
•Must be precisely aligned to ensure effective air ventilation and cooling”
