Gear Motor or Small Gear , Model: ZH / ZV
This compact gear motor is grease-lubricated and designed for light- to medium-duty applications.
Available under the brand “NORCE”

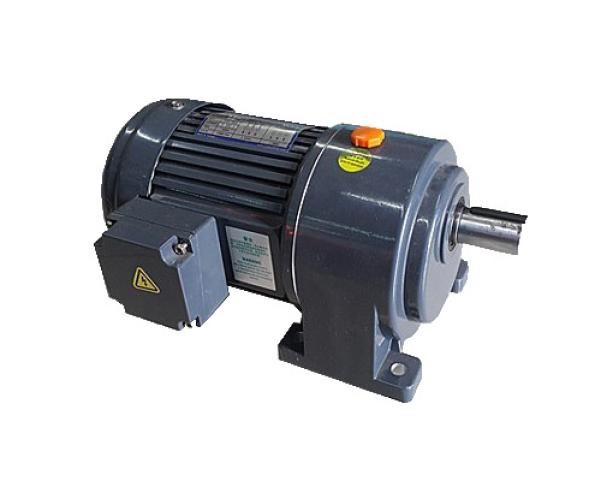

Model ZH: Foot-mounted type

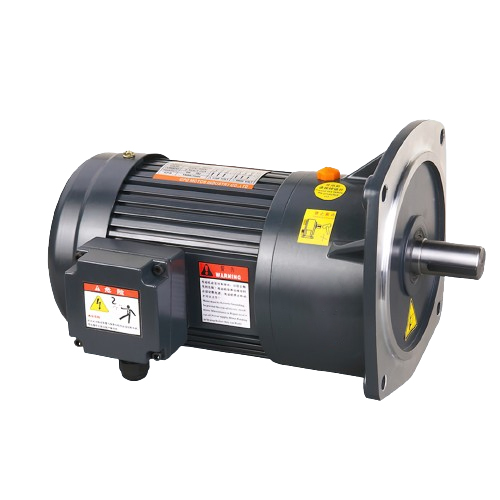

Model ZV: Flange-mounted type
Description:
This lightweight gear motor is designed to increase torque in applications with not very high-speed requirements.
It is grease-lubricated, requiring minimal maintenance, which makes it user-friendly and easy to care for.
However, it is not suitable for applications with high shock loads.
Small Gear Motor (Grease-Lubricated Type)
Compatible with motors from 0.25 HP to 5 HP, voltage 220V or 220/380V
Gear ratio range: 1:3 to 1:200
Available in both foot-mounted (ZH) and flange-mounted (ZV) configurations
Housing made of aluminum and steel, offering strength and durability
Recommended Industries
– Conveyor systems
– Mixing and filling machines
– Grinding machines, and other light to medium-duty industrial equipment
Applications
Ideal for use in conveyor systems, machine drive mechanisms, packaging lines, food-related machinery, and light-duty product handling.
Low-maintenance design – The gear unit is grease-lubricated, eliminating the need for oil changes.
This makes it easy to maintain, simple to operate, and space-saving in installation.
Important Information for Selecting a Gear Motor Model
Before choosing a gear motor, please consider the following details:
• Required horsepower (HP) or kilowatt (kW) rating
• Gear ratio (RATIO) or the desired output speed (RPM)
• Preferred mounting type: Foot-mounted or Flange-mounted
• Power supply specification:
– 220V, 1-phase
– 220/380V, 3-phase
– 380/660V, 3-phase
• Continuous operating hours – helps determine the appropriate motor grade and durability required for the application
