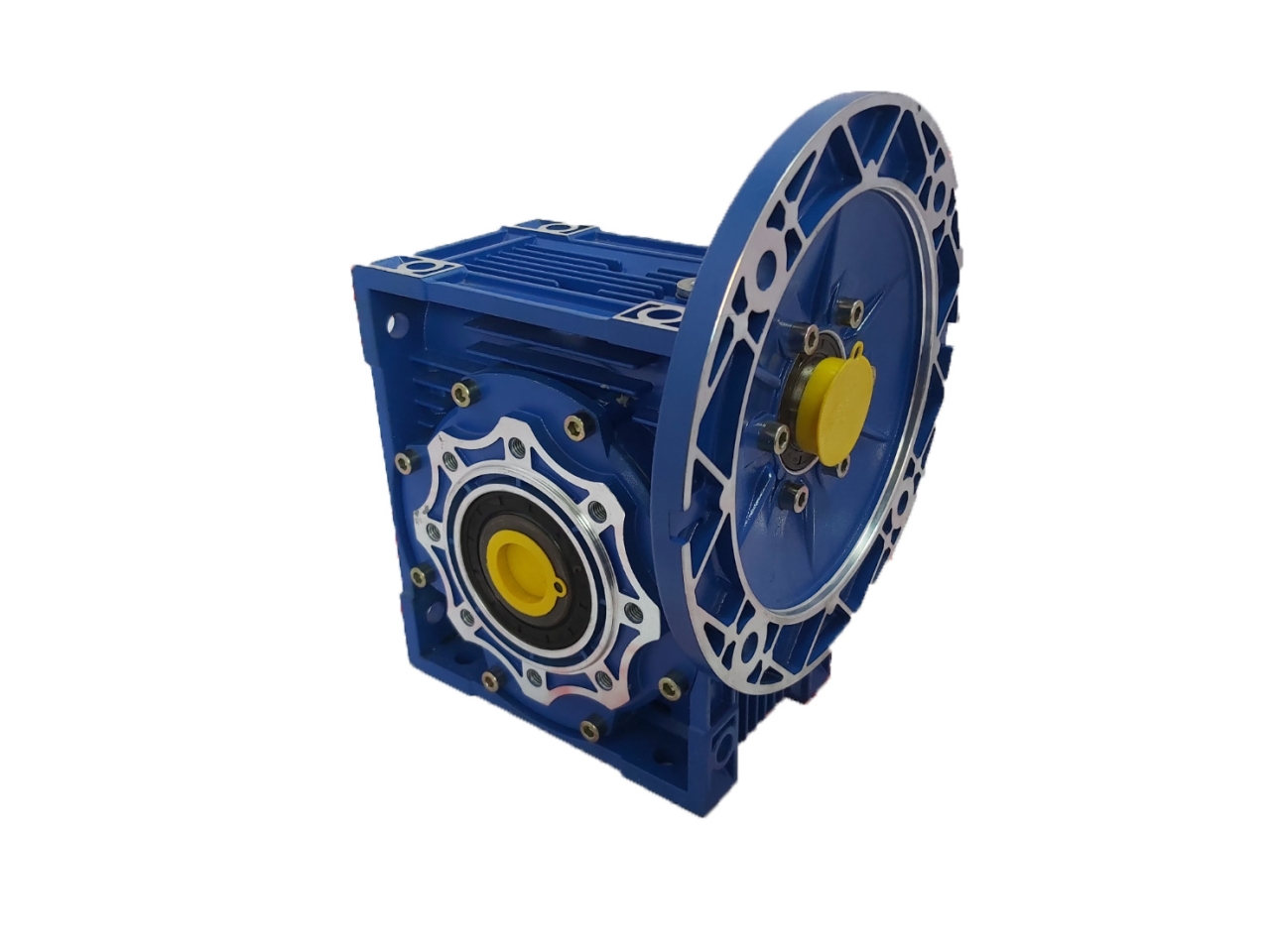

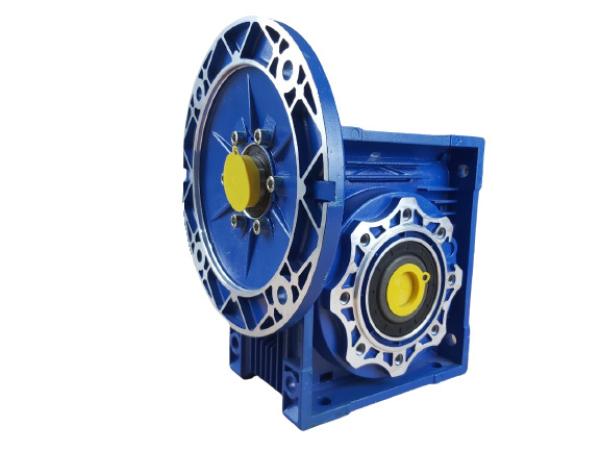

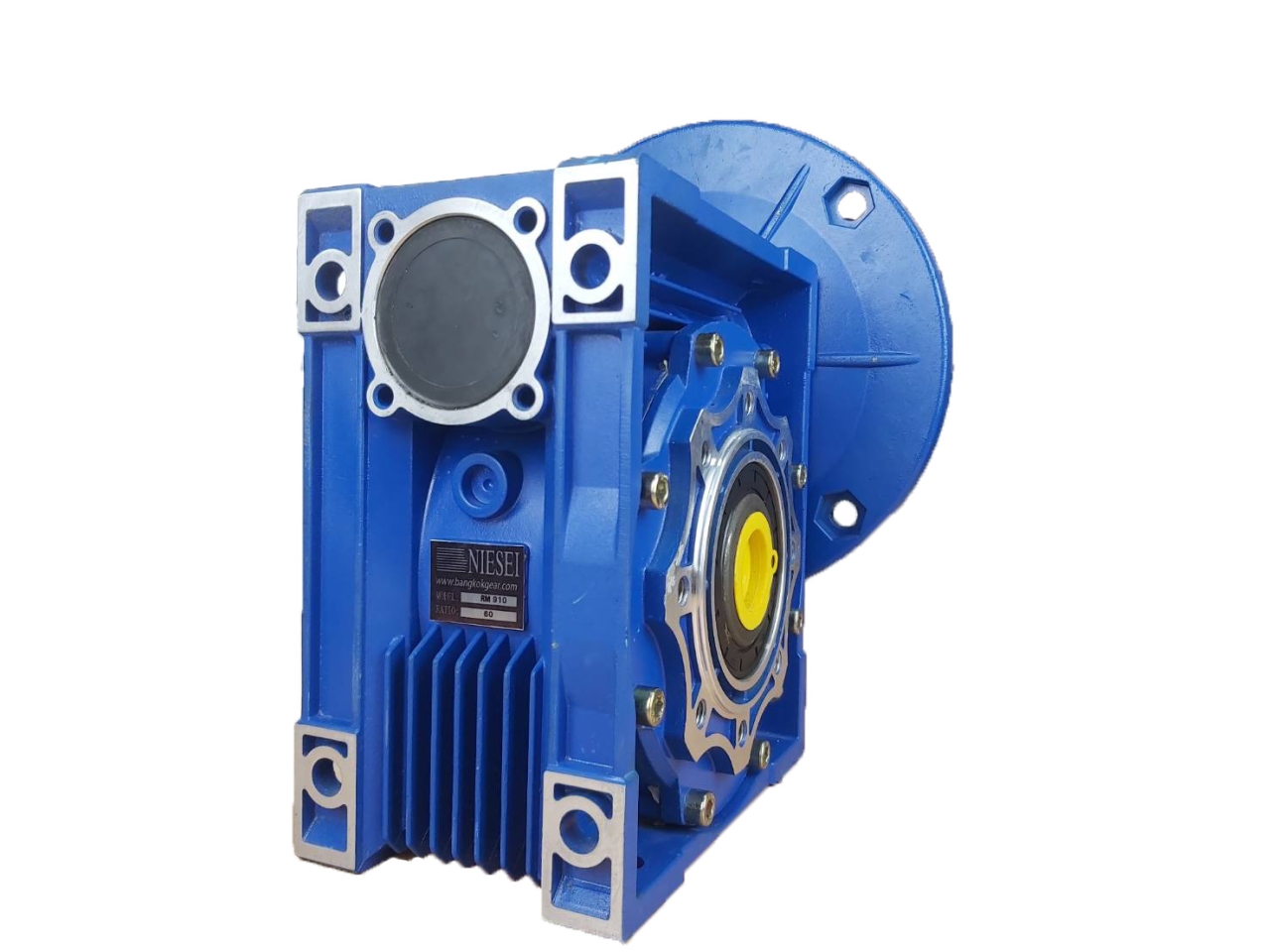

WORM GEAR SPEED REDUCER, “NIESEI” Brand
The RM series worm gear speed reducer is designed to reduce motor speed through a worm and gear mechanism, while significantly increasing torque output. Crafted from high-quality materials, it is ideal for general industrial applications.
Its compact, square-shaped housing ensures strength, easy installation, and a clean, modern appearance. RM series worm gear speed reducer is manufactured with precision and advanced technology, ensuring smooth, reliable operation.
Available under the brand “NIESEI”
MODEL
| RM025 | RM303 | RM404 | RM505 | RM607 | RM708 | RM910 | RM105 | RM111 | RM130 | RM150 |
RATIO
| 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 |
Key Features
1.The output shaft is designed as a hollow type
2. There is a flange for mounting the motor without using a coupling or pulley, saving space and simplifies installation.
Applicable models
1. RM 303 for 1/4HP, 1/2HP motors
2. RM 404 for 1/4HP, 1/2HP motors
3. RM 505 for 1/4HP, 1/2HP, 1HP motors
4. RM 607 for 1/2HP, 1HP, 2HP motors
5. RM 708 for 1/2HP, 1HP, 2HP, 3HP motors
6. RM 910 for 2HP, 3HP motors
7. RM 111 for 2HP, 3HP, 5HP, 7.5HP motors
8. RM 130 for 3HP, 5HP, 7.5HP motors
