“Turbo Blower CX Series, distributed under the brand “”NORCE”” ,

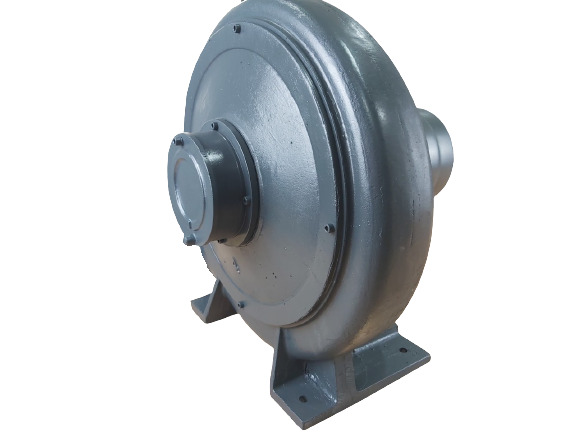

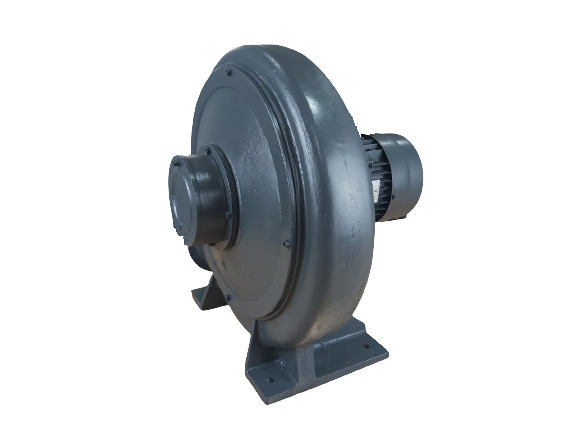

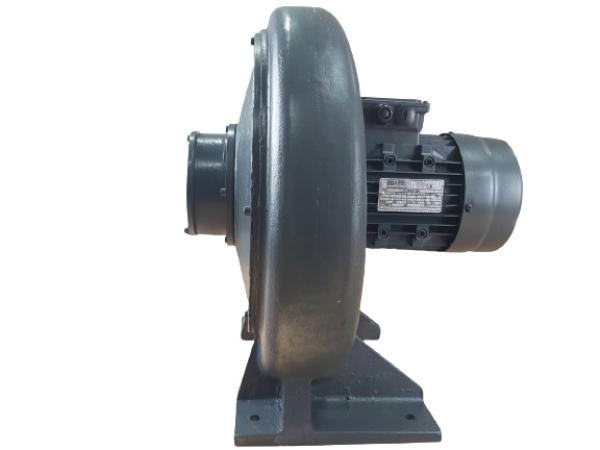

Centrifugal Blower – Turbo Blower CX Series, is a high-quality turbo blower with specially designed blades, enabling it to produce high pressure, high air volume, and low noise. We use a standardized motor and shaft, which extending the life of the blower for durability and longevity. Furthermore, aluminum alloy material, making the blower lightweight.
This blower can be widely used in both household and industrial applications, such as plastics, film, textile, printing, heat forming, drying, vacuuming, incineration, etc.
Distributed under the brand NORCE
MODEL : CX
Product details Turbo Blower CX Series
Product ID: CX SERIES
“
| MODEL | PHASE | FREQUENCY (Hz) |
OUTPUT (KW) |
VOLTAGE (V) |
CURRENT (A) |
PRESSURE (max) kPa |
AIR FLOW (max) m3/min |
INLET (mm) |
OUTLET (mm) |
NOISE LEVEL (dB) |
WEIGHT |
| CX-65 | 1φ 3φ |
50/60 | 0.2 | 220 220/380 |
1.5 1.1/0.9 |
0.7/1.1 | 4.5/5.3 | 100 | 65 | 65/70 | 7 |
| CX-0.5 | 1φ 3φ |
50/60 | 0.4 | 220 220/380 |
2.5 1.9/1.2 |
1.1/1.6 | 7/8 | 100 | 75 | 70/75 | 10 |
| CX-1 | 1φ 3φ |
50/60 | 0.74 | 220 220/380 |
5 3/1.9 |
1.7/2.4 | 13/15 | 125 | 100 | 75/80 | 16 |
| CX-2 | 3φ | 50/60 | 1.5 | 220/380 | 5.5/3.5 | 2/3 | 20/23 | 125 | 100 | 82/90 | 26 |
| CX-3 | 3φ | 50/60 | 2.2 | 220/380 | 8/5 | 2.4/3.7 | 32/37 | 252 | 125 | 87/95 | 37 |
| CX-5 | 3φ | 50/60 | 3.7 | 220/380 | 13/7.5 | 3.2/4.4 | 46/53 | 252 | 150 | 92/100 | 52 |
Applications
*Printing Machines
*Burning Machines
*Plastic Extruders, Laminating, Film Making Machines
*Uniform Temperature Equipment
*Household Machines
*Dust Collectors
*Textile Machines
*Pollution Machines
*Hot Air Blowers
*Dryers Machines
*Incinerators
*Machinery for the Food and Beverage Industries
*Machinery for Cooling
*Woodworking Machines
*Grain Elevators
Features:
*High pressure. Larger flow. Light weight.
*Cast Iron alloy material was Widespread be use, offer light products.
*I.E.C. Designed motor (1HP UP), Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
*Professional impeller designed, high pressure, larger flow, Low noise, and long life.
*Special air-flow-adjust designs offer stable flows and easily control.
*Full range styles and sufficiently finished products of each model make quickly delivery be possible.
